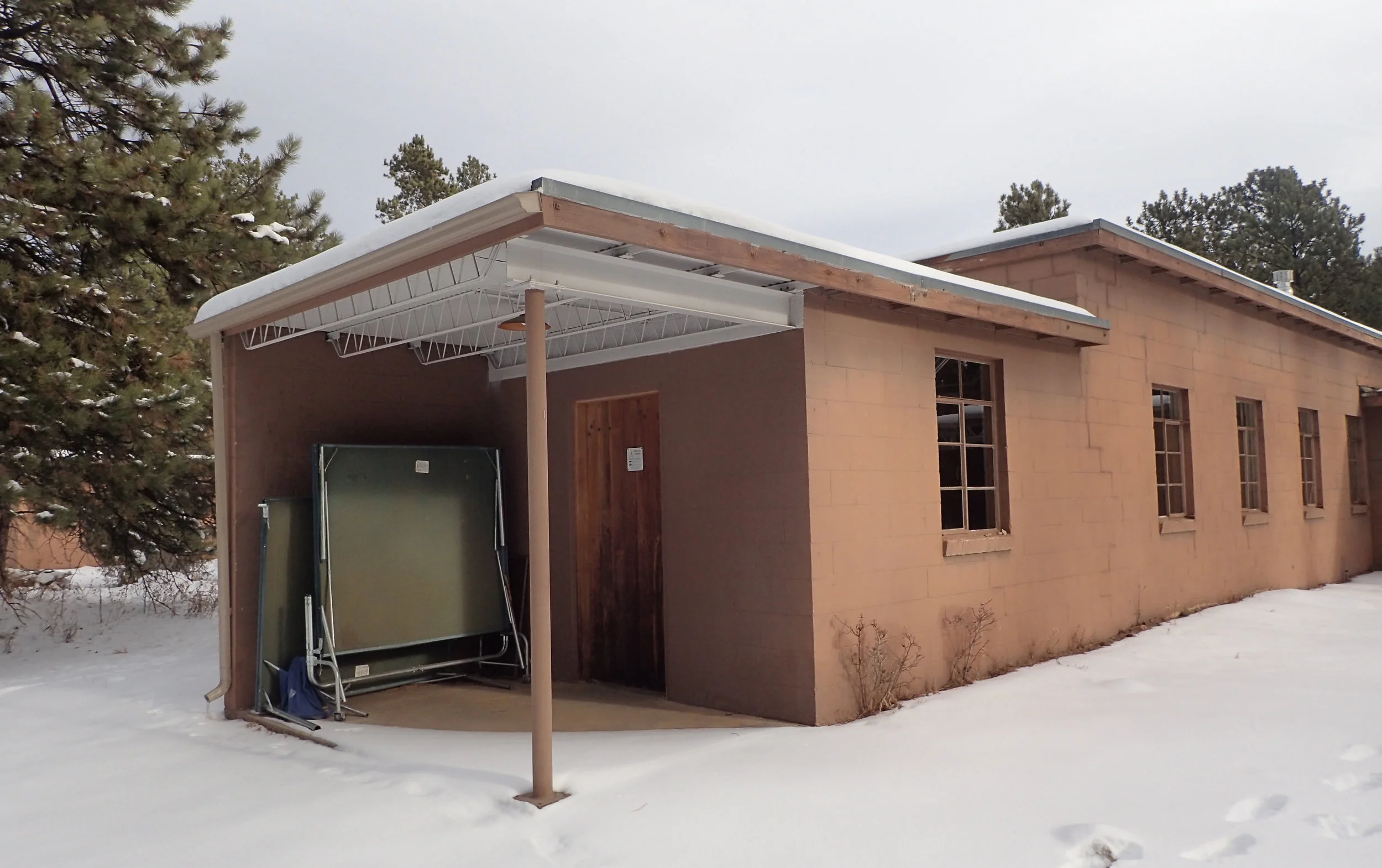

The existing dorm is a simple concrete masonry structure with a flat roof supported by exposed, open-webbed metal joists. The solid north wall blocked the view from the property's northwest entrance.
       
     
Construction photo: View of the new main entry porch and custom truss.
       
     
Replacing the existing roof, removing some interior walls and furring out the walls will create a new image for the structure.
       
     
Southwest view from above.
       
     
We created new exterior gathering spaces: an outdoor classroom in the central courtyard and a new southwest patio for dining.
       
     
New large doors from the bedroom wings along the north and central axises of the building activate the central courtyard.
       
     
A new lighting plan accentuates the large interior gathering spaces and their vaulted ceilings.
       
     

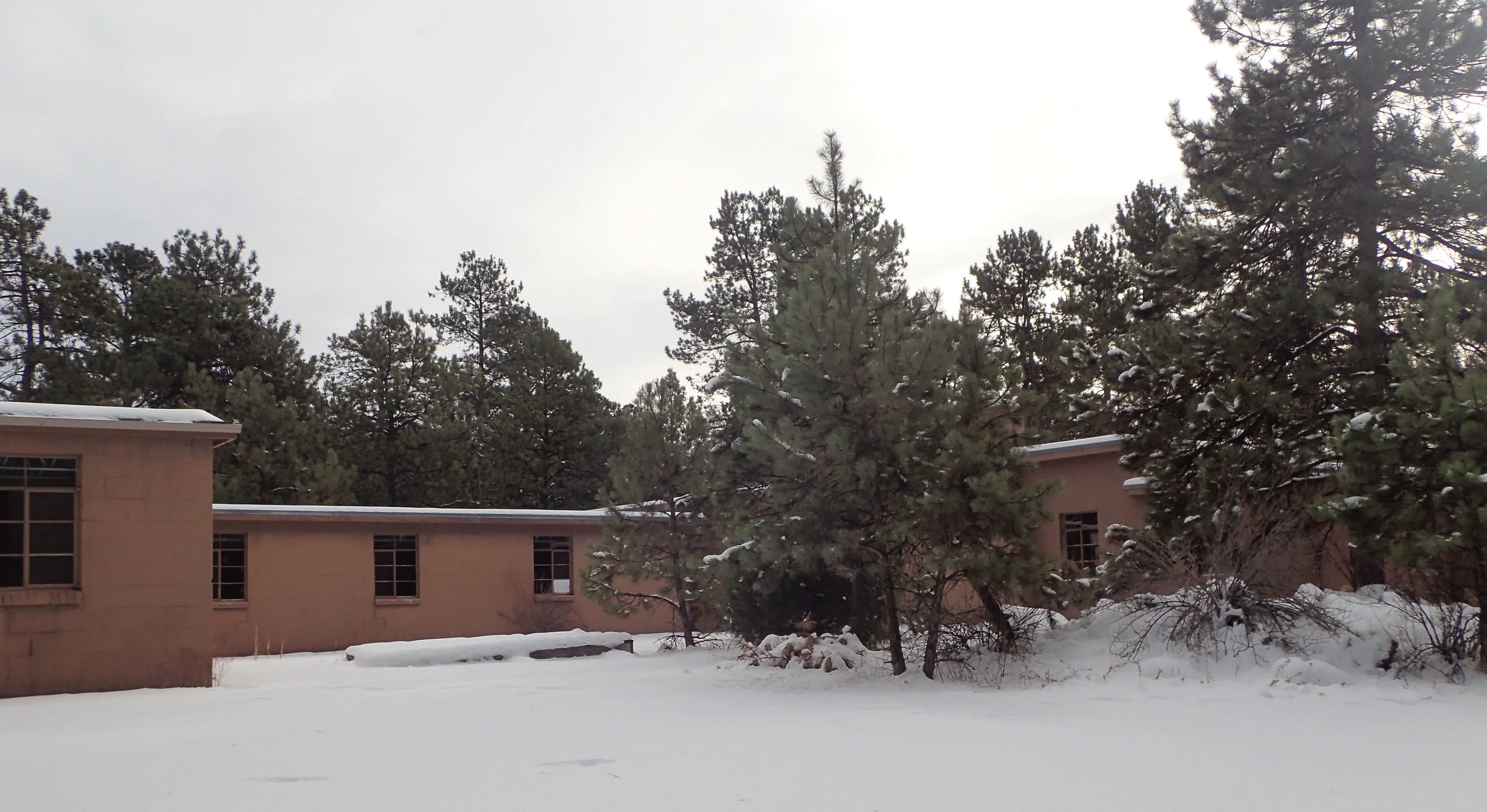

The existing building lacked a strong entry point.
       
     
By extending the roof to create new covered porches, within the courtyard and along the western wall, we have marked a true front facade for the building.
       
     
Construction photo: Framing of the new courtyard and covered porch.
       
     
The building's west elevation demonstrates how the new covered porches also create shaded areas which help minimize the building's solar gain.
       
     
The Northwest view from above shows a new covered porch over the North Entry. New circulation paths connect all of the pedestrian entries to the building.
       
     
This section of the Foyer and Multi-Purpose Room shows the new vaulted ceiling with skylights between the custom trusses.
       
     

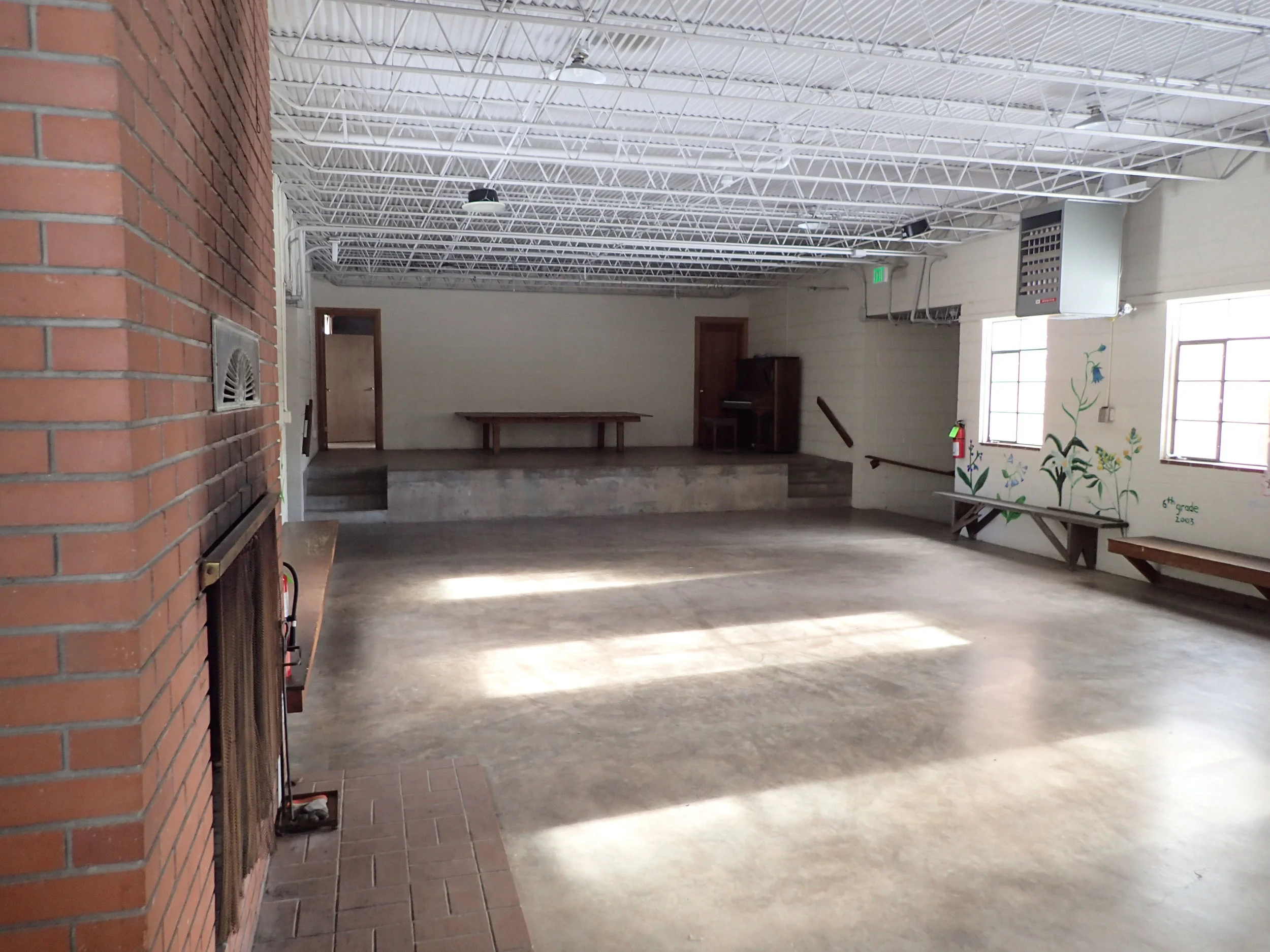

Existing Multi-Purpose Room
       
     
View - Multi-Purpose Room
       
     
Construction photo: Interior custom trusses in the Multi-Purpose Room.
       
     
Construction photo: View of the custom trusses and coordinating skylights in the Multi-Purpose Room.
       
     
Construction photo: View up through the custom trusses to the skylights above.
       
     
Sections & Interior Elevations of the Kitchen & Dining Wing
       
     

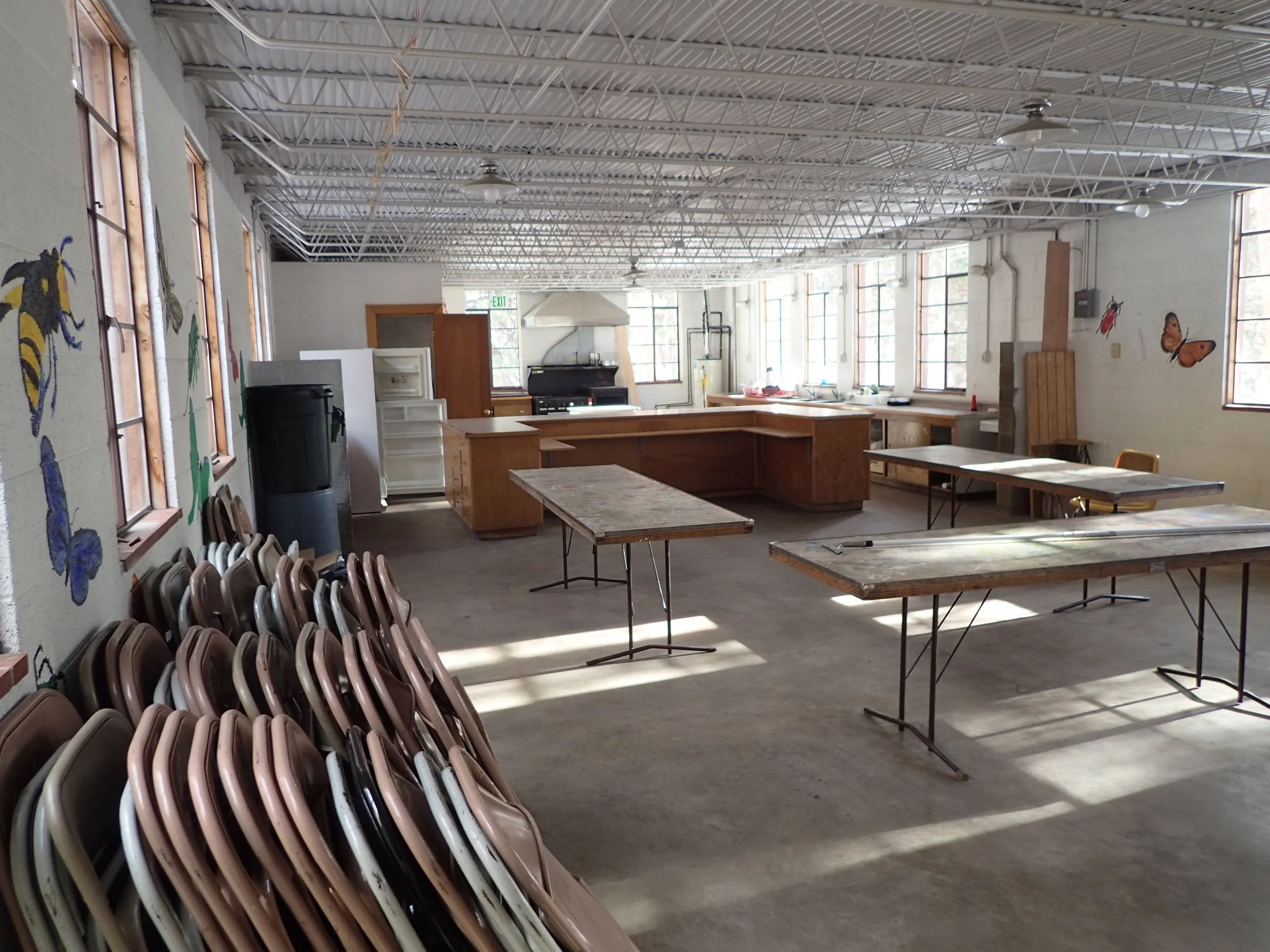

Interior view of the existing kitchen.
       
     
3D rendering of the new dining area.
       
     
3D rendering of the new kitchen area.
       
     
Construction photo: Interior framing and custom trusses in the new dining/kitchen area.
       
     
